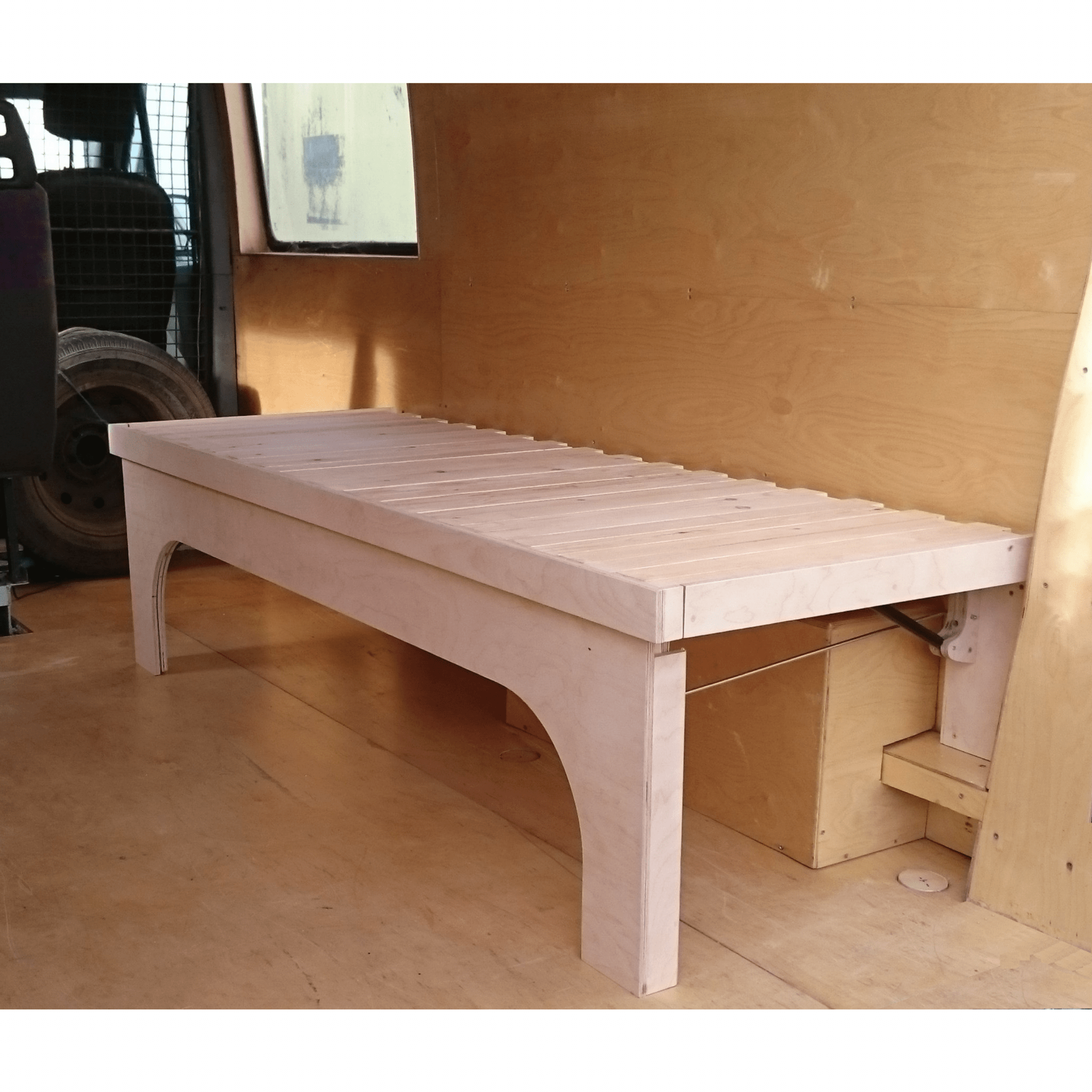

Fold Away Sofa Bed

fold away sofa bed 2 3595 p 1
fold away sofa bed 3 3595 p 1
fold away sofa bed 4 3595 p 1
fold away sofa bed 5 3595 p 1
fold away sofa bed 2 3595 p 1
fold away sofa bed 3 3595 p 1
fold away sofa bed 4 3595 p 1
fold away sofa bed 5 3595 p 1

£749.72 inc VAT

Fold out sofa bed for vans that like to be camper vans and camper vans that are occasionally vans

In stock

SKU: FSB-S-FN-TM-D1-W1 Categories: , Tags: , , , , , , , , , , , ,

Description

Ideal solution for work vans that like to be camper vans in their spare time or camper vans that occasionally go to work!

Simply fold it down for a sofa and extend it out for a full size double bed 1900×1350

Folds away to side of van to only 100mm (4 inch) thick.

Light weight and strong design, not your typical caravan bed!

20mm thick wooden slats for mattress to rest upon and quality birch ply supports.

Gas spring strut assisted for ease of operation.

We can supply variations of this design including one that has room for a mattress to be left in place when folded and one that has fixed storage underneath, Custom sizes can also be supplied, contact us to discuss bespoke orders.

Dimensions

Dimensions

Folded – Width 100mm from van side, Height: 1222mm from van floor
Seat – Length 1924mm, Width 733mm, Height 539mm
Bed – Length 1924mm, Width 1360mm, Height 539mm

Fitting Information

Fitting information

  • Wheel arch clearance height 465mm, (a cut out in the wooden mount would be required), without cutting the mount 430mm
  • Bed can be reduced in height from the standard 539mm upon request, the reduction must also be taken from the above wheel arch clearance heights to make sure it will fit
  • Supplied in bare wood, we recommend finishing, waxing is easiest.
  • Ratchet strap and cargo eyes supplied, Fixing are not supplied as every van is different, we recommend self tapping screws with a min size of 5mm/10gauge and pop rivets for cargo eyes
  • Installation is quite simple and a guide is supplied but installer must be competent enough to ensure its safe.

Delivery

Free next day delivery to most of the UK. Please note that if you have selected waxing on your unit, this will add one working day before we can dispatch as the units are waxed by hand.
Some remote UK areas will incur additional delivery charges and will take longer to arrive. Please select your postcode area at the check-out for the correct delivery charges for this unit.

Orders placed before 11am (Monday – Friday) will be dispatched the same day and delivered the following working day. Orders placed over the weekend will be dispatched Monday and delivered Tuesday.

Sent with UPS or TNT, includes insurance (T&C apply).

Overseas customers including southern Ireland need to contact by email or phone and request a quote/eta for the location before placing an order.
